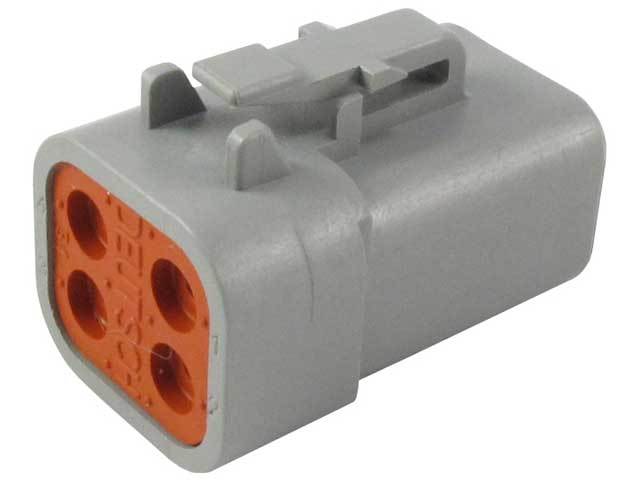

DTP06-4S

PLG, 4P, GRY, N

$7.44
In Stock


Calculate Shipping

Part Number: DTP04-2P
Series: DTP Series
Insulation: .134-.170 [3.40-4.32]
Wire Size: 10, 12, 14
Required Wedgelock: WP-2P
Keyed: No
Color: Gray
Material: Plastic
Shape: Rectangular
Connector Style: Receptacle
Cavities: 2
Contact Size: 12
Current Rating: 25
Holds Pin/Socket: Pin
Flange/In-line/PCB Mount: In-line

(A03319H)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Connector & Contact Terminates To : Wire & Cable

  • Strain Relief : Add By Accessory

  • Row-to-Row Spacing : 10.16 mm [ .4 in ]

Configuration Features


  • Number of Positions : 4

  • Number of Rows : 2

  • Blank Cavity Position : 0

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 48

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Body Features


  • Color : Gray

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 2.39 mm [ .094 in ]

  • Contact Current Rating (Max) (A): 25

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 6.71 mm [ .264 in ]

Dimensions


  • Width : 22.05 mm [ .868 in ]

  • Height : 24.38 mm [ .96 in ]

  • Length : 34.65 mm [ 1.364 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP68

  • UL Flammability Rating : 20mm Flame Test per Standard UL-94

  • Agency/Standard : SAE J2030

Packaging Features


  • Packaging Method : Box

  • Packaging Quantity : 800

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDTP06-4S%7FB%7Fpdf%7FEnglish%7FENG_CD_DTP06-4S_B.pdf%7FDTP06-4S

SKU A03319H
Brand Deutsch/TE
Shipping Weight 0.0100kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.010m
Shipping Cubic 0.000002000m3
