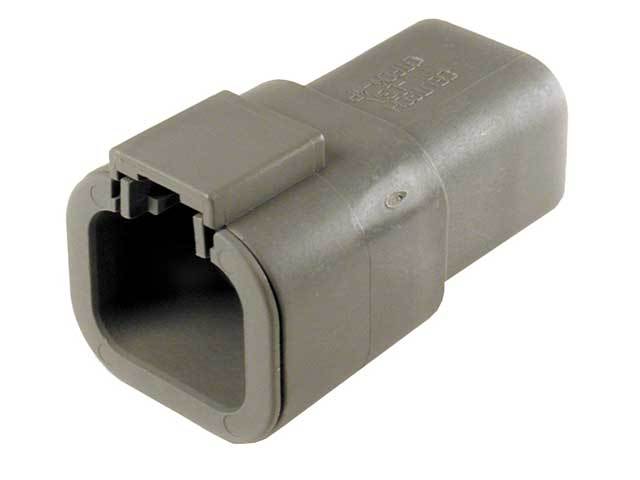

DTP04-2P

REC, 2P, GRY, N

$5.98
RRP $6.13
SAVE $0.15 (2%)
Sold Out


Calculate Shipping

Hybrid, Housing for male terminals, Wire-to-Wire, 2 Position, 6.71mm [.264in] Centerline, Sealable, Gray, Wire & Cable

(A03319C)

Product Type Features


  • Connector Style : Housing for male terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Connector & Contact Terminates To : Wire & Cable

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 2

  • Number of Rows : 1

  • Blank Cavity Position : 0

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 48

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Body Features


  • Color : Gray

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 2.39 mm [ .094 in ]

  • Contact Current Rating (Max) (A): 25

Mechanical Attachment


  • Connector Mounting Type : Cable Mount (Free-Hanging), Fixing Screw

  • Mounting Feature : With

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 6.71 mm [ .264 in ]

Dimensions


  • Width : 22.15 mm [ .872 in ]

  • Height : 21.54 mm [ .848 in ]

  • Length : 47.27 mm [ 1.861 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP 68

  • UL Flammability Rating : 20mm Flame Test per Standard UL-94

  • Agency/Standard : SAE J2030

Packaging Features


  • Packaging Method : Box

  • Packaging Quantity : 550

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDTP04-2P%7FC%7Fpdf%7FEnglish%7FENG_CD_DTP04-2P_C.pdf%7FDTP04-2P

SKU A03319C
Brand Deutsch/TE
Shipping Weight 0.0100kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.010m
Shipping Cubic 0.000002000m3
