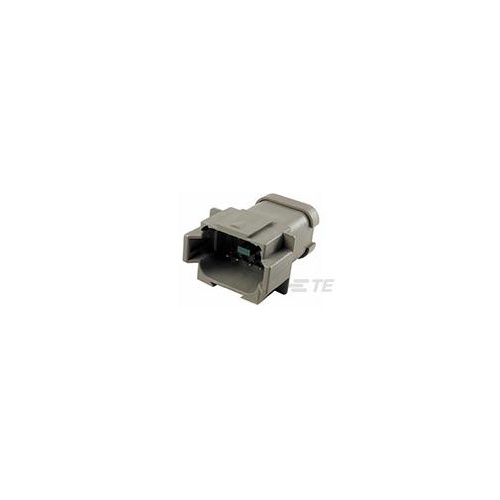

DEUTSCH DT, Housing for male terminals, Bus Bar-to-Wire, 8 Position, 9.12mm [.359in] Centerline, Sealable, Gray, Bus Bar / Wire & Cable
(A03307R)
Product Type Features
-
Connector Style : Housing for male terminals
-
Connector System : Bus Bar-to-Wire
-
Sealable : Yes
-
Hybrid Connector : No
-
Primary Locking Feature : Integrated in Housing
-
Connector & Contact Terminates To : Bus Bar, Wire & Cable
-
Strain Relief : Add By Accessory
-
Row-to-Row Spacing : 45.45 mm [ .175 in ]
Configuration Features
-
Number of Positions : 8
-
Number of Rows : 2
-
Blank Cavity Position : 0
Electrical Characteristics
-
Nominal Voltage Architecture (V): 12, 24, 48
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
Body Features
-
Color : Gray
-
Connector Code : A
-
Cable Exit Angle : 180°
-
Body Material : PA GF
Contact Features
-
Mating Pin Diameter : 1.59 mm [ .0625 in ]
-
Contact Current Rating (Max) (A): 13
Mechanical Attachment
-
Connector Mounting Type : Cable Mount (Free-Hanging), Fixing Screw
-
Mounting Feature : With
-
Terminal Position Assurance : Yes
-
Polarized : Yes
Housing Features
-
Centerline (Pitch) : 9.12 mm [ .359 in ]
Dimensions
-
Width : 36.45 mm [ 1.435 in ]
-
Height : 23.88 mm [ .94 in ]
-
Length : 46.94 mm [ 1.848 in ]
Usage Conditions
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application : Power & Signal
Industry Standards
-
Degree of Protection : IP68, IP6K9K
-
UL Flammability Rating : 12mm Flame Test per Standard UL-94
-
Agency/Standard : SAE J2030
Packaging Features
-
Packaging Method : Box
-
Packaging Quantity : 300
Other
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
| SKU |
A03307R |
| Brand |
Deutsch |
