DT04-12PA-P026

REC, 12P, GRY, BUSBAR 2X6, NICKEL, A

$19.95
In Stock


Calculate Shipping

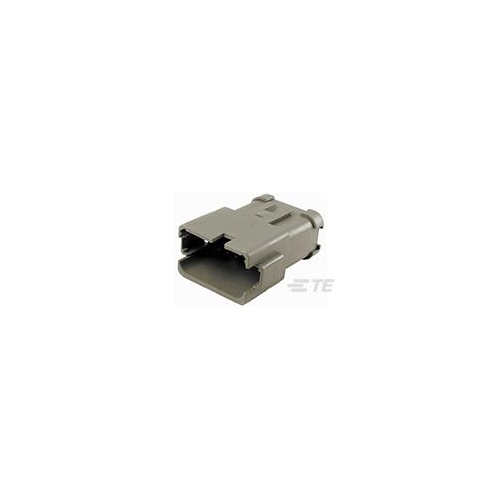

DEUTSCH DT, Housing for male terminals, Bus Bar-to-Wire, 12 Position, 9.12mm [.359in] Centerline, Sealable, Gray, Wire & Cable / Bus Bar

(A03312BA)

Product Type Features


  • Connector Style : Housing for male terminals

  • Connector System : Bus Bar-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Connector & Contact Terminates To : Bus Bar, Wire & Cable

  • Strain Relief : Add By Accessory

  • Row-to-Row Spacing : 4.45 mm [ .175 in ]

Configuration Features


  • Number of Positions : 12

  • Number of Rows : 2

  • Blank Cavity Position : 0

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 48

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Body Features


  • Color : Gray

  • Connector Code : A

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 1.59 mm [ .0625 in ]

  • Contact Current Rating (Max) (A): 13

Mechanical Attachment


  • Connector Mounting Type : Cable Mount (Free-Hanging), Fixing Screw

  • Mounting Feature : With

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 9.12 mm [ .359 in ]

Dimensions


  • Width : 40.56 mm [ 1.597 in ]

  • Height : 22.25 mm [ .876 in ]

  • Length : 51.89 mm [ 2.043 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP68, IP6K9K

  • UL Flammability Rating : 12mm Flame Test per Standard UL-94

  • Agency/Standard : SAE J2030

Packaging Features


  • Packaging Method : Box

  • Packaging Quantity : 250

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes
