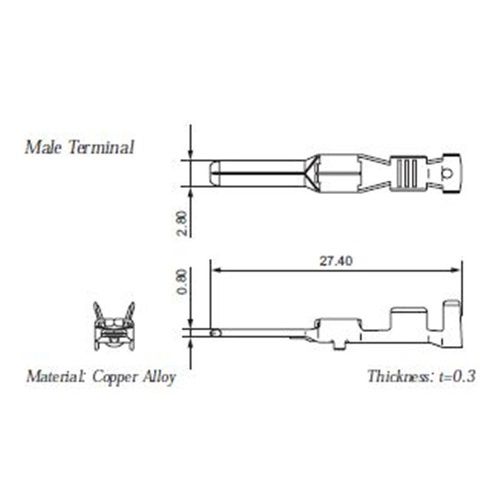

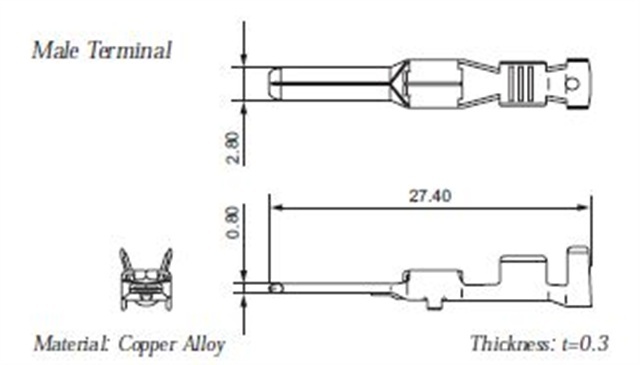

7114-4112 - YAZAKI MALE TERMINAL, TIN, 2.0mm
YES / YESC KAIZEN CONNECTORS SERIES
$1.32
In Stock
7114-4112 - YAZAKI MALE TERMINAL, TIN, 2.0mm
YES / YESC KAIZEN CONNECTORS SERIES
(B01857P)
| Classified Parts | Terminal |
|---|---|
| Family*2 | YES/YESC Kaizen Connectors |
| Type | 2.8X0.8 |
| Yazaki Part Number | 7114-4112-02 |
| Connection Type | Wire to Wire |
| Unsealed/Seald | Unsealed |
| Male/Female | Male |
| Number of Poles | - |
| Tab Width mm(inches) | 2.8(110) |
| Material | Copper Alloy |
| Plating | Tin Plating |
| Color | - |
| Rating | - |
| Mating Part Numbers | 7116-4112-02 |
| Product Specification No. | YPES-11-05-105 |
| Instruction Manual No. | YPES-15-366 |
*2)The Family introduction page can be seen by clicking the Family name.
| Product Specification | |
|---|---|
| Allowable Current(Ref.) | Refer to the table of Housing |
| Low Level Contact Resistance | Refer to the table of Housing |
| Insulation Resistance | Refer to the table of Housing |
| Withstanding Voltage | Refer to the table of Housing |
| Temperature Range | Refer to the table of Housing |
| Application List of Installable Components | ||
|---|---|---|
| Wire Type | Wire Size(mm2) | Wire Seals |
| AVS | 2.0 | - |
| - | 2.5 | - |
https://connectors-catalog.sys.yzk.co.jp/yazaki-web/servlet/MainServlet_e
| SKU | B01857P |
| Brand | Yazaki |
| Shipping Weight | 0.0010kg |
