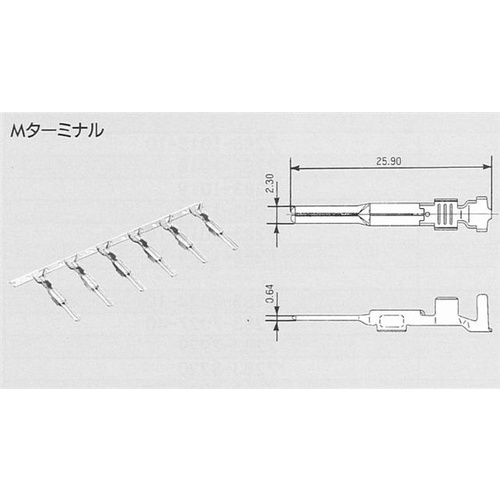

7114-4026 - YAZAKI MALE TERMINAL, TIN, 0.85 - 1.25mm
2.3II(090II) CONNECTORS SERIES
$0.53
In Stock
7114-4026 - YAZAKI MALE TERMINAL, TIN, 0.85 - 1.25mm
2.3II(090II) CONNECTORS SERIES
(B01857)
| Classified Parts | Terminal |
|---|---|
| Family*2 | 2.3II(090II) Connectors |
| Type | - |
| Yazaki Part Number | 7114-4026 |
| Connection Type | Wire to Wire |
| Unsealed/Seald | Sealed |
| Male/Female | Male |
| Number of Poles | - |
| Tab Width mm(inches) | 2.3(090) |
| Material | Brass |
| Plating | Tin Plating |
| Color | - |
| Rating | - |
| Mating Part Numbers | 7116-4026 |
| Product Specification No. | YPES-11-04-019 |
| Instruction Manual No. | YPES-15-119 |
*2)The Family introduction page can be seen by clicking the Family name.
| Product Specification | |
|---|---|
| Allowable Current(Ref.) | Refer to the table of Housing |
| Low Level Contact Resistance | Refer to the table of Housing |
| Insulation Resistance | Refer to the table of Housing |
| Withstanding Voltage | Refer to the table of Housing |
| Temperature Range | Refer to the table of Housing |
| Application List of Installable Components | ||
|---|---|---|
| Wire Type | Wire Size(mm2) | Wire Seals |
| AVS | 0.85 to 1.25 | 7157-3646 |
| AVS | 0.85 to 1.25 | 7157-3648 |
| AVS | 0.85 | 7158-3007-10 |
| AVS | 1.25 | 7158-3008-80 |
| CAVS | 1.25 | 7157-3646 |
| CAVS | 1.25 | 7157-3648 |
| CAVS | 0.85 | 7157-3857-60 |
| CAVS | 0.85 | 7158-3006-90 |
| CAVS | 1.25 | 7158-3007-10 |
https://connectors-catalog.sys.yzk.co.jp/yazaki-web/servlet/MainServlet_e
| SKU | B01857 |
| Brand | Yazaki |
| Shipping Weight | 0.0010kg |
