ULTRA THIN AUTOMOTIVE CABLE - 0.5mm² - BLACK - 10 METRES

$8.80
In Stock

Base Colour
Stripe Colour
Reel Size

Available Options


Calculate Shipping



Austech Wire & Cable, established in 1997 is situated in Braeside, Victoria, Australia and is a privately-owned company.



Our world class manufacturing facility is equipped with the latest technology – highly automated state of the art machinery, with built in process control systems to ensure products are consistently produced at the highest quality standards.



We pride ourselves with technology and partner with the best manufacturers in the world including Kuhara, Niehoff, Rosendahl, Pioneer, PS Costruzioni, Balloffet.. etc and with those, it enables us to achieve the best results when it comes to the quality of everything that we do.

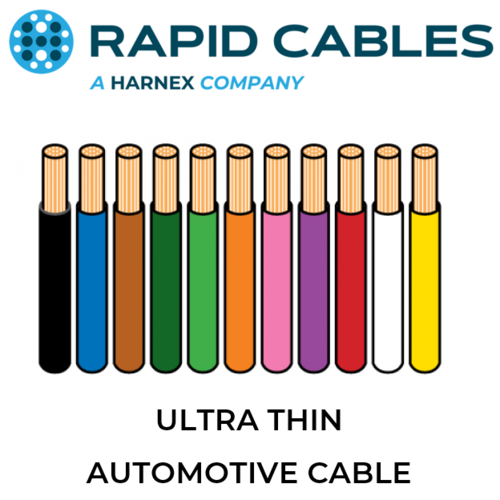

ULTRA THIN AUTOMOTIVE CABLE (AVCB)

  • 16/0.20 (0.5mmsq) Plain Annealed Copper
  • 105C PVC Insulated
  • 3 amps (or 10 amps to JASO D608 at 30c single core in air)
  • Extra Low Voltage Automotive cable
  • Not for Mains connection
  • 18 strands of 0.19mm nom. Plain Annealed Copper to AS/NZS1125, drawn from Class 110A copper to AS/NZS1574
  • Max. D.C. resistance at 20C:   37.1 ohms / km
  • Coloured P.V.C. type V90HT (105c) to AS/NZS3808
    • Nominal Diameter:             1.5 mm
    • Nominal Wall Thickness:   0.26 mm



Colours: Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Violet, White, Yellow and the widest range of trace colours
Packs: 10 metres, 30 metres, 100 metres, larger pack sizes available by request

(RC-AVL)

  • Manufactured to: ISO 6722:2006 (Class B)
  • Voltage rating: suitable for 12V & 24V systems (60V max.)
  • Nominal current rating: 11A
  • Maximum loading: 132W@12V,  264W@24V
  • No./size of conductors: 16/0.20mm
  • Conductor cross section: 0.5mm²
  • Maximum overall cable diameter: 1.7mm
  • Resistance per m at 20°C: 0.0371 Ω
  • Conductor material: Plain copper
  • Insulation material: PVC (hard grade)
  • Working temperature range: -40°C to +105°C  (with brief excursions up to +120°C)
SKU RC-AVL
Brand Austech
