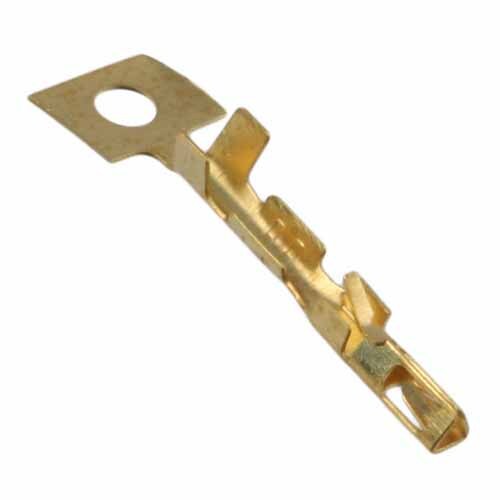

M80-2540045 - FEMALE TERMINAL, GOLD, 26-28 AWG
DATAMATE TRIO-TEK
$1.06
In Stock
Female 26-28AWG Cable Crimp Trio-Tek Contact
2.00mm Pitch High-Reliability Connector - Datamate Trio-Tek
(B01683T)
Technical Details
SPECIFICATION
EU ROHS STATUS:
CONTACT PITCH:
2.00mm (0.079")
CONTACT GENDER:
Female/Socket/Jack
CONNECTOR ORIENTATION:
Straight
CONNECTION TYPE:
Cable (Crimp)
CABLE CONDUCTOR SIZE:
26-28AWG
MATING PIN SIZE:
Ø0.5mm
CURRENT RATING:
3A
OPERATING TEMPERATURE:
-55°C to +125°C
POLARISING FEATURES:
No
END STACKABLE:
No
SIDE STACKABLE:
No
CAN BE CUT TO ANOTHER SIZE:
No
NUMBER OF SIGNAL CONTACTS:
1
MATERIALS
FINISH / PLATING ON TERMINATION:
Gold
FINISH / PLATING ON CONTACT SURFACE:
Gold
BASE MATERIAL OF CONTACT:
Beryllium Copper
PACKAGING STYLE:
Reel
DIMENSIONS
INDIVIDUAL PART WEIGHT:
0.059g
OVERALL DIMENSIONS (L X W X D) IN MM:
10.20 x 2.20 x 2.00 (contact only)
https://cdn.harwin.com/pdfs/M80-253-254.pdf
https://cdn.harwin.com/pdfs/C040XX_Trio-Tek_Datamate_Connectors.pdf
| SKU | B01683T |
| Brand | HARWIN |
| Shipping Weight | 0.0010kg |
