$56.43
In Stock


Calculate Shipping

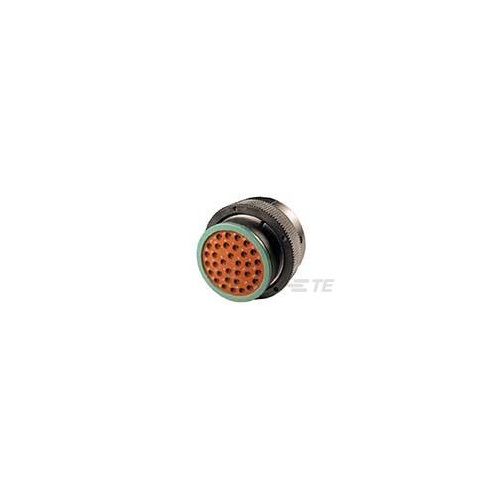

Hybrid, Housing for female terminals, Wire-to-Wire, 33 Position, Sealable, Green, Power & Signal

(A03290I)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 33

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Body Features


  • Color : Green

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 1 mm [ .039 in ]

Mechanical Attachment


  • Terminal Position Assurance : No

  • Mounting Feature : Without

  • Polarized : Yes

Dimensions


  • Length : 38.63 mm [ 1.521 in ]

  • Height : 49.53 mm [ 1.95 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP67

  • UL Flammability Rating : 20mm Flame Test per Standard UL-94

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FHDP26-24-XXP%2FSX%7FC%7Fpdf%7FEnglish%7FENG_CD_HDP26-24-XXPXSX_C.pdf%7FHDP26-24-33SN

SKU A03290I
Brand Deutsch/TE
Shipping Weight 0.0500kg
Shipping Width 0.041m
Shipping Height 0.041m
Shipping Length 0.038m
Shipping Cubic 0.000064000m3
