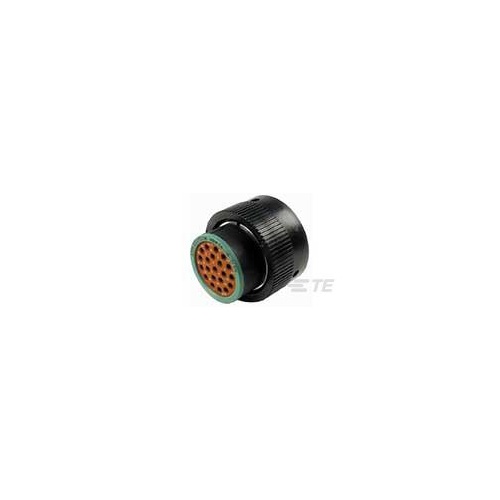

Hybrid, Housing for male terminals, Wire-to-Wire, 21 Position, Sealable, Green, Power & Signal
(A03288N)
Product Type Features
-
Connector Style : Housing for male terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Hybrid Connector : No
-
Primary Locking Feature : Integrated in Housing
-
Strain Relief : Add By Accessory
Electrical Characteristics
-
Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Body Features
-
Color : Green
-
Cable Exit Angle : 180°
-
Body Material : PA GF
Contact Features
-
Mating Pin Diameter : 1 mm [ .039 in ]
Mechanical Attachment
-
Terminal Position Assurance : No
-
Mounting Feature : Without
-
Polarized : Yes
Dimensions
-
Length : 38.63 mm [ 1.521 in ]
-
Height : 43.17 mm [ 1.7 in ]
Usage Conditions
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application : Power & Signal
Industry Standards
-
Degree of Protection : IP67
-
UL Flammability Rating : 20mm Flame Test per Standard UL-94
Other
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
