$47.00
In Stock


Calculate Shipping

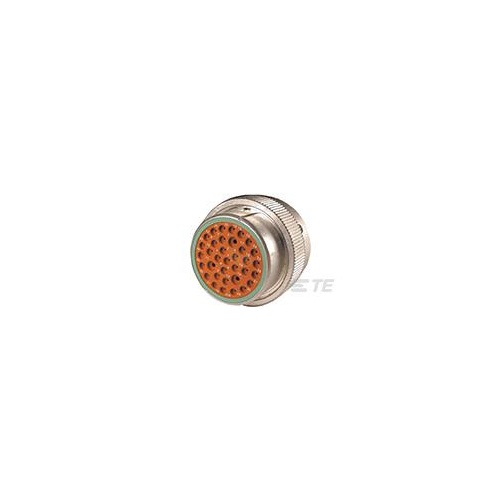

Hybrid, Housing for male terminals, Wire-to-Wire, 35 Position, Sealable, Green, Power & Signal

(A03264BK)

Product Type Features


  • Connector Style : Housing for male terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : Yes

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 35

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Body Features


  • Color : Green

  • Cable Exit Angle : 180°

  • Body Material : Other

Contact Features


  • Mating Pin Diameter (mm): 1, 1.5

  • Mating Pin Diameter (in): .039, .059

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : No

  • Polarized : Yes

Dimensions


  • Width : 49.33 mm [ 1.942 in ]

  • Height : 38.61 mm [ 1.52 in ]

  • Length : 42.33 mm [ 1.667 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP67

Packaging Features


  • Packaging Method : Package

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FHD36-24-XXP%2FSX%7FB2%7Fpdf%7FEnglish%7FENG_CD_HD36-24-XXPXSX_B2.pdf%7FHD36-24-35PN

SKU A03264BK
Brand Deutsch/TE
Shipping Weight 0.0500kg
Shipping Width 0.048m
Shipping Height 0.042m
Shipping Length 0.038m
Shipping Cubic 0.000077000m3
