$2.18
In Stock


Calculate Shipping

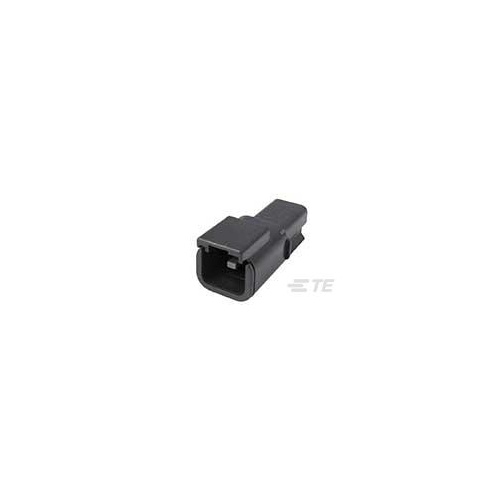

Hybrid, Housing for male terminals, Wire-to-Wire, 2 Position, 4mm [.157in] Centerline, Sealable, Gray, Contact Current Rating (Max) 7.5 A

(A03290YAA)

Product Type Features


  • Connector Style : Housing for male terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 2

  • Number of Rows : 1

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

  • Operating Voltage (VDC): 250

Body Features


  • Color : Gray

  • Connector Code : A

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 1 mm [ .039 in ]

  • Contact Current Rating (Max) (A): 7.5

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : No

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 4 mm [ .157 in ]

Dimensions


  • Width : 18.52 mm [ .729 in ]

  • Height : 16.21 mm [ .638 in ]

  • Length : 41.15 mm [ 1.62 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]

Industry Standards


  • Degree of Protection : Not Tested

  • UL Flammability Rating : Not Tested

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDTMH04-2PX%7FA%7Fpdf%7FEnglish%7FENG_CD_DTMH04-2PX_A.pdf%7FDTMH04-2PA

SKU A03290YAA
Brand Deutsch/TE
Shipping Weight 0.0250kg
Shipping Width 0.018m
Shipping Height 0.041m
Shipping Length 0.016m
Shipping Cubic 0.000012000m3
