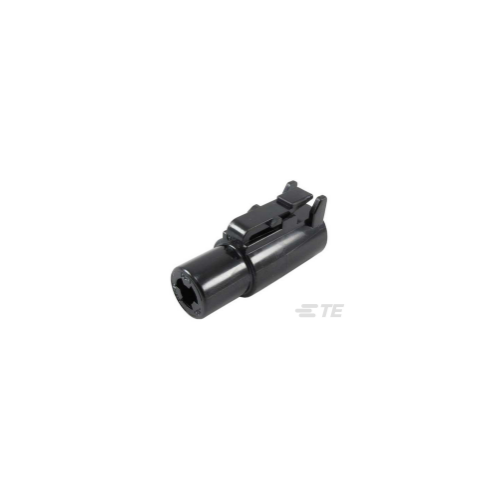

DTHD06-1-12S

DTHD PLUG ASM

$5.50
In Stock


Calculate Shipping

Hybrid, Housing for female terminals, Wire-to-Wire / Wire-to-Board, 1 Position, Sealable, Black, Wire & Cable, Contact Current Rating (Max) 25 A

(A03337A)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Board, Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Connector & Contact Terminates To : Wire & Cable

  • Strain Relief : No

Configuration Features


  • Number of Positions : 1

  • Blank Cavity Position : 0

Body Features


  • Color : Black

  • Cable Exit Angle : 180°

  • Body Material : PEI (Polyetherimide)

Contact Features


  • Mating Pin Diameter : 2.5 mm [ .098 in ]

  • Contact Current Rating (Max) (A): 25

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : No

Dimensions


  • Width : 14.48 mm [ .57 in ]

  • Height : 19.58 mm [ .771 in ]

  • Length : 38.05 mm [ 1.498 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Packaging Features


  • Packaging Method : Box

  • Packaging Quantity : 1500

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDTHD06-1-12S%7FA%7Fpdf%7FEnglish%7FENG_CD_DTHD06-1-12S_A.pdf%7FDTHD06-1-12S

SKU A03337A
Brand Deutsch/TE
Shipping Weight 0.0500kg
Shipping Width 0.020m
Shipping Height 0.040m
Shipping Length 0.020m
Shipping Cubic 0.000016000m3
