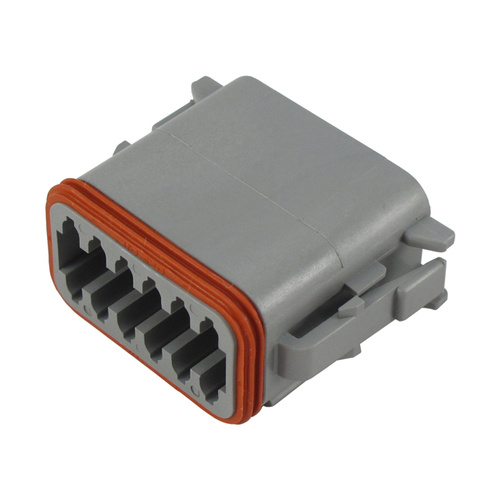

DT06-12SA-C015

PLG, 12P, GRY, E, A

$8.14
In Stock


Calculate Shipping

Part Number: DT06-12SA
Series: DT Series
Insulation: .053-.120 [1.35-3.05]
Wire Size: 14, 16, 18, 20
Required Wedgelock: W12S
Keyed: Yes, A key
Color: Gray
Material: Plastic
Shape: Rectangular
Connector Style: Plug
Cavities: 12
Contact Size: 16
Current Rating: 13
Holds Pin/Socket: Socket
Flange/In-line/PCB Mount: In-line

(A03310G)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Connector & Contact Terminates To : Wire & Cable

  • Strain Relief : Add By Accessory

  • Row-to-Row Spacing : 4.45 mm [ .175 in ]

Configuration Features


  • Number of Positions : 12

  • Number of Rows : 2

  • Blank Cavity Position : 0

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 48

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Body Features


  • Color : Gray

  • Connector Code : A

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 1.59 mm [ .0625 in ]

  • Contact Current Rating (Max) (A): 13

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 9.12 mm [ .359 in ]

Dimensions


  • Width : 18.19 mm [ .716 in ]

  • Height : 40.56 mm [ 1.597 in ]

  • Length : 30.94 mm [ 1.218 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP68, IP6K9K

  • UL Flammability Rating : 12mm Flame Test per Standard UL-94

  • Agency/Standard : SAE J2030

Packaging Features


  • Packaging Method : Box

  • Packaging Quantity : 500

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDT06-12SX-C015%7FC%7Fpdf%7FEnglish%7FENG_CD_DT06-12SX-C015_C.pdf%7FDT06-12SA-C015

SKU A03310G
Brand Deutsch/TE
Shipping Weight 0.0100kg
Shipping Width 0.010m
Shipping Height 0.020m
Shipping Length 0.010m
Shipping Cubic 0.000002000m3
