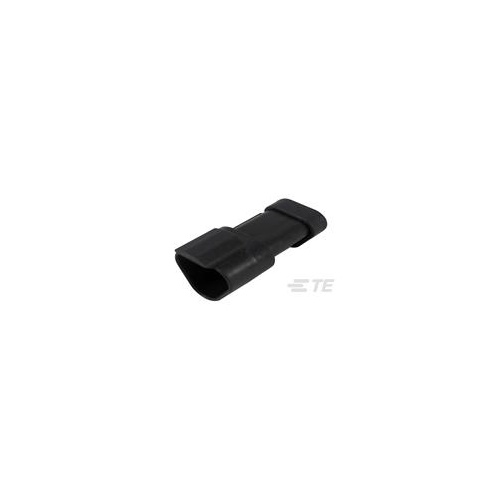

DT04-3P-EP10

REC, 3P, BLK, 120 OHM RESISTOR

$10.91
In Stock


Calculate Shipping

DEUTSCH DT, Housing for male terminals, Component-to-Wire, 3 Position, 10.01mm [.394in] Centerline, Sealable, Black, Wire & Cable

(A03316M)

Product Type Features


  • Connector Style : Housing for male terminals

  • Connector System : Component-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Connector & Contact Terminates To : Wire & Cable

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 3

  • Blank Cavity Position : 0

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 48

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Body Features


  • Color : Black

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 1.59 mm [ .0625 in ]

  • Contact Current Rating (Max) (A): 13

Mechanical Attachment


  • Connector Mounting Type : Cable Mount (Free-Hanging), Fixing Screw

  • Mounting Feature : With

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 10.01 mm [ .394 in ]

Dimensions


  • Width : 21.13 mm [ .832 in ]

  • Height : 24.71 mm [ .973 in ]

  • Length : 44.65 mm [ 1.758 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP68, IP6K9K

  • UL Flammability Rating : 12mm Flame Test per Standard UL-94

  • Agency/Standard : SAE J2030

Packaging Features


  • Packaging Method : Box

  • Packaging Quantity : 750

Other


  • Connector Position Assurance Capable : No

  • Serviceable : No

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDT04-3P-EP10%7FA%7Fpdf%7FEnglish%7FENG_CD_DT04-3P-EP10_A.pdf%7FDT04-3P-EP10

SKU A03316M
Shipping Weight 0.0500kg
Shipping Width 0.030m
Shipping Height 0.040m
Shipping Length 0.040m
Shipping Cubic 0.000048000m3
