DTM13-12PA-12PB-R

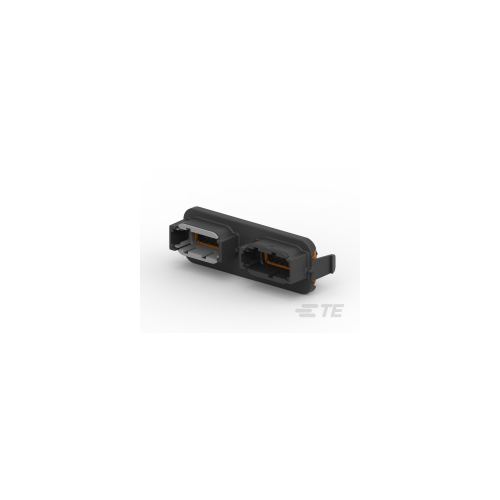

Deutsch DTM Series PCB Header 24 Way

$88.00
In Stock


Calculate Shipping

HDR, 24P, BLK, RA EEC, NI/CU, AB

(A03310ACA)

Product Type Features


  • Connector System : Wire-to-Board, Wire-to-Device

  • Sealable : Yes

  • Connector & Contact Terminates To : Printed Circuit Board

  • Shielded : Yes

  • Hybrid Header : No

Configuration Features


  • Number of Positions : 24

  • Number of Rows : 2

  • Number of Sections : 2

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 42, 48, 240

  • Voltage Rating (Max) (VAC): 250

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

  • Voltage Rating (Max) (VDC): 12

Body Features


  • Color : Black

  • Connector Code : A, B

Contact Features


  • Pin Diameter : 1 mm [ .039 in ]

  • Interface Plating : Nickel (Ni)

Termination Features


  • Termination Method : Through Hole - Solder

Mechanical Attachment


  • PCB Mount Retention Type : Solder Tail

  • PCB Mount Retention : With

  • Panel Mount Feature : Without

  • PCB Mount Alignment : With

  • Mounting Orientation : Horizontal/90°

  • Mounting Holes : Without

  • Locking Interface : With

Housing Features


  • Centerline (Pitch) : 4.2 mm [ .165 in ]

Dimensions


  • Width : 35 mm [ 1.378 in ]

  • Length : 101 mm [ 3.976 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

  • Operating Temperature (Max) (°C): 100, 105, 110, 120, 125, 65, 70, 75, 80, 85, 90

  • Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257

Industry Standards


  • Degree of Protection : Not Tested

  • UL Flammability Rating : 20mm Flame Test per Standard UL-94

Packaging Features


  • Packaging Quantity : 40

  • Packaging Type : Box
