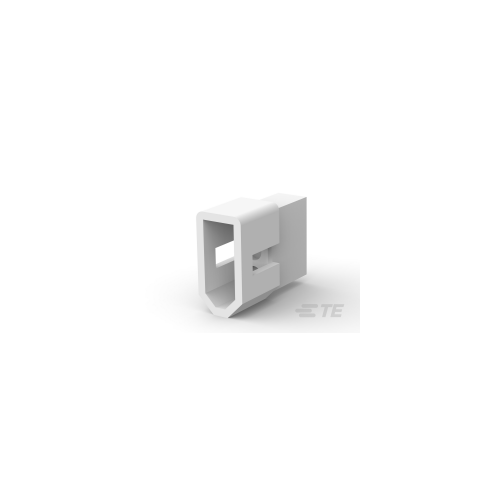

Commercial Pin and Socket Connectors, Rectangular Power Connectors, Housing, Plug, Wire-to-Wire, 3 Position, 3.68mm [.145in] Centerline, Wire & Cable

(A01108)

Product Type Features


  • Rectangular Power Connector Type : Housing

  • Connector & Housing Type : Plug

  • Connector System : Wire-to-Wire

  • Sealable : No

  • Connector & Contact Terminates To : Wire & Cable

Configuration Features


  • Number of Positions : 3

  • Number of Signal Positions : 3

  • Number of Rows : 1

Electrical Characteristics


  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Contact Features


  • Contact Retention Within Housing : Without

  • Contact Type : Pin

  • Multiple Contact Types : Without

  • Contact Layout : Inline

Termination Features


  • Termination Method to Wire & Cable : Crimp

  • Wire/Cable Type : Discrete Wire

Mechanical Attachment


  • Panel Mount Feature : Without

  • Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features


  • Centerline (Pitch) : 3.68 mm [ .145 in ]

  • Housing Color : Natural

  • Housing Material : Nylon

Dimensions


  • Wire Size (AWG): 30 – 18

  • Wire Size (mm²): .2 – .9

  • Wire Size (CMA): 394.71 – 1776.17

  • Row-to-Row Spacing : 3.68 mm [ .145 in ]

  • Length : 19.3 mm [ .76 in ]

  • Height : 7.62 mm [ .3 in ]

  • Accepts Wire Insulation Diameter Range : 1.27 – 2.79 mm [ .05 – .11 in ]

  • Width : 12.5 mm [ .5 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

  • Insertion Force (Newton): 17.8

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • UL Flammability Rating : UL 94V-2

  • Glow Wire Rating : Standard Part - Not Glow Wire

  • VDE Tested : No

  • CSA File Number : LR7189

  • UL Rating : Recognized

  • Agency/Standard : CSA, UL

  • Agency/Standard Number : E28476

Packaging Features


  • Packaging Method : Package

  • Packaging Quantity : 1
