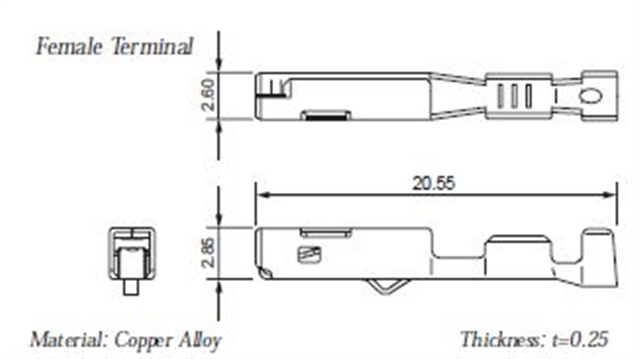

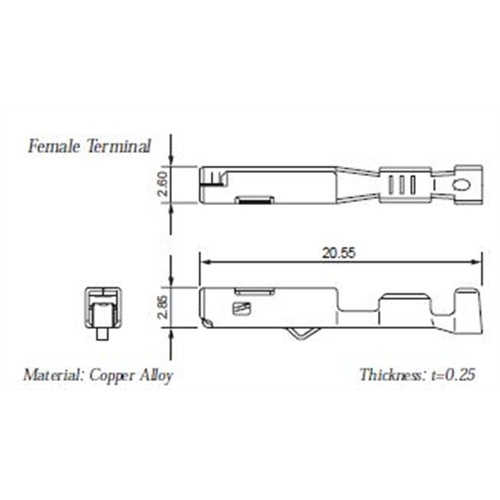

7116-4101-02 - FEMALE TERMINAL, TIN, 0.85 - 1.25mm
YAZAKI YES / YESC KAIZEN CONNECTORS SERIES
$1.10
In Stock
7116-4101-02 - FEMALE TERMINAL, TIN, 0.85 - 1.25mm
YAZAKI YES / YESC KAIZEN CONNECTORS SERIES
(B01884)
| Classified Parts | Terminal |
|---|---|
| Family*2 | YES/YESC Kaizen Connectors |
| Type | 1.5X0.8 |
| Yazaki Part Number | 7116-4101-02 |
| Connection Type | Wire to Wire Wire to Device |
| Unsealed/Seald | Unsealed |
| Male/Female | Female |
| Number of Poles | - |
| Tab Width mm(inches) | 1.5(060) |
| Material | Copper Alloy |
| Plating | Tin Plating |
| Color | - |
| Rating | - |
| Mating Part Numbers | 7114-4101-02 |
| Product Specification No. | YPES-11-05-105 |
| Instruction Manual No. | YPES-15-239 |
*2)The Family introduction page can be seen by clicking the Family name.
| Product Specification | |
|---|---|
| Allowable Current(Ref.) | Refer to the table of Housing |
| Low Level Contact Resistance | Refer to the table of Housing |
| Insulation Resistance | Refer to the table of Housing |
| Withstanding Voltage | Refer to the table of Housing |
| Temperature Range | Refer to the table of Housing |
| Application List of Installable Components | ||
|---|---|---|
| Wire Type | Wire Size(mm2) | Wire Seals |
| AVS | 0.85 to 1.25 | - |
| CAVS | 0.85 to 1.25 | - |
https://connectors-catalog.sys.yzk.co.jp/yazaki-web/servlet/MainServlet_e
| SKU | B01884 |
| Brand | Yazaki |
| Shipping Weight | 0.0010kg |
