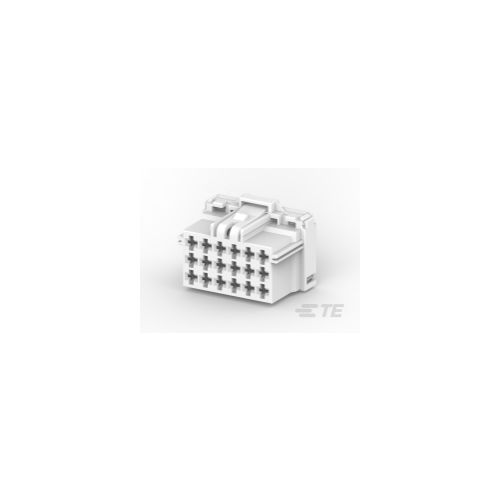

Hybrid, Housing for female terminals, Wire-to-Wire, 18 Position, 5mm [.197in] Centerline, Natural, Signal

(A00569RP)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : No

  • Hybrid Connector : No

  • Primary Locking Feature : On the Terminal

  • Strain Relief : No

  • Row-to-Row Spacing : 5.5 mm [ .217 in ]

Configuration Features


  • Number of Positions : 18

  • Number of Rows : 3

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24

  • Operating Voltage (VDC): 28

Body Features


  • Color : Natural

  • Cable Exit Angle : 180°

  • Body Material : PBT GF

Contact Features


  • Mating Tab Width : 2.8 mm [ .11 in ]

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 5 mm [ .197 in ]

Dimensions


  • Width : 36 mm [ 1.417 in ]

  • Height : 24 mm [ .945 in ]

  • Length : 36 mm [ 1.417 in ]

Usage Conditions


  • Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Operation/Application


  • Circuit Application : Signal

Packaging Features


  • Packaging Method : Carton

  • Packaging Quantity : 1000

Other


  • Connector Position Assurance Capable : No

  • Serviceable : No

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7F1355073%7FF%7Fpdf%7FEnglish%7FENG_CD_1355073_F.pdf%7F7-968974-1

SKU A00569RP
Shipping Weight 0.0250kg
Shipping Width 0.036m
Shipping Height 0.036m
Shipping Length 0.024m
Shipping Cubic 0.000031000m3
