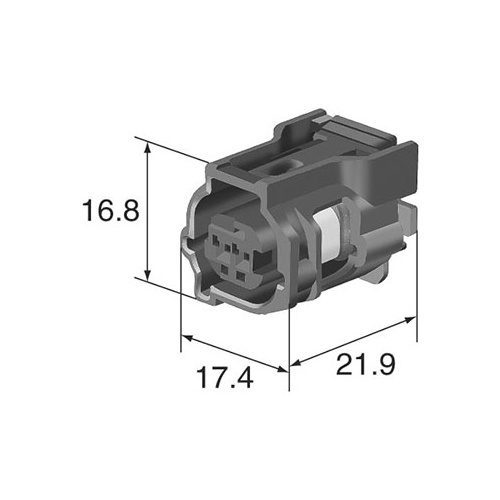

SUMITOMO HOUSING 2 WAY

(A01538)

6189-1161
TS sealed series
Housing Inline
0.64mm(025)
Sealed/Unsealed sealed
Male/Female F
Way
2
Mating parts 6188-4797(TS sealed series)
Materials PBT
Color Black
Contact resistance
Initial
8mΩ Max.
after durability tests
16mΩ Max.
Leak current 50μA Max.
Insulation resistance 100MΩ Min.
Seal
Initial
50kPa Min.
after durability tests
30kPa Min.

http://prd.sws.co.jp/components/en/detail.php?number_s=61891161

SKU A01538
Brand Sumitomo
Shipping Weight 0.0500kg
