$1.98
In Stock


Calculate Shipping

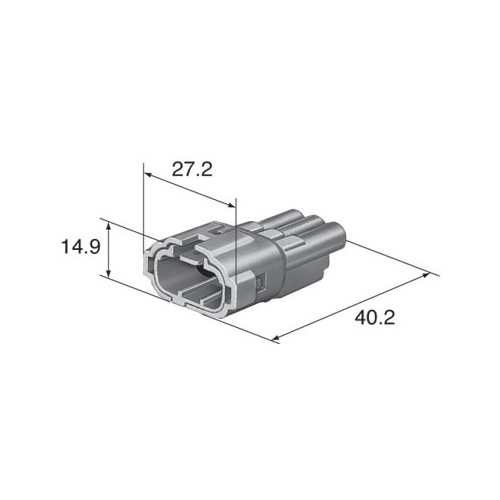

SUMITOMO HOUSING 3 WAY

(A01534)

6187-3801
This is old series
HM sealed series
Housing Inline Bracket fixation
2.3mm(090)
Sealed/Unsealed sealed
Male/Female M
Way
3
Mating parts 6180-3451(HM sealed series)
Materials 66 Nylon
Color Natural
Contact resistance
Initial
3mΩ Max.
after durability tests
10mΩ Max.
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
Seal
Initial
49.0kPa Min.
after durability tests
29.4kPa Min.
Note A Type

http://prd.sws.co.jp/components/en/detail.php?number_s=61873801

SKU A01534
Brand Sumitomo
Shipping Weight 0.0500kg
