$5.54
In Stock


Calculate Shipping

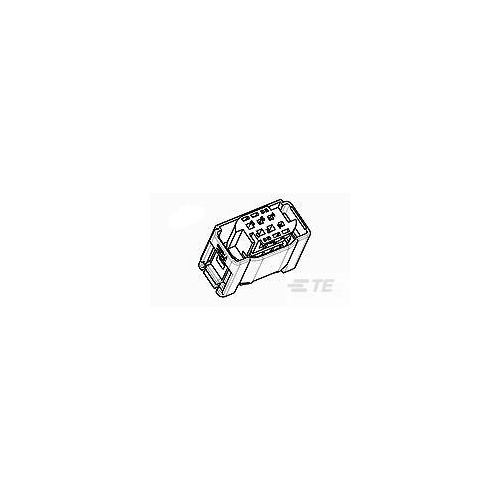

MQS, Housing for female terminals, Wire-to-Wire, 6 Position, 4mm [.157in] Centerline, Sealable, Black, Signal

(A00569ZM)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : On the Terminal

  • Strain Relief : No

  • Row-to-Row Spacing : 5.9 mm [ .232 in ]

Configuration Features


  • Number of Positions : 6

  • Number of Rows : 2

Body Features


  • Color : Black

  • Cable Exit Angle : 180°

  • Body Material : PBT GF

Contact Features


  • Mating Tab Width : .63 mm [ .025 in ]

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features


  • Centerline (Pitch) : 4 mm [ .157 in ]

Dimensions


  • Width : 17 mm [ .669 in ]

  • Height : 30.4 mm [ 1.197 in ]

  • Length : 24 mm [ .945 in ]

Usage Conditions


  • Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Operation/Application


  • Circuit Application : Signal

Industry Standards


  • Degree of Protection : IPX9K

Packaging Features


  • Packaging Method : Bag

Other


  • Connector Position Assurance Capable : No

  • Serviceable : No

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7F967616%7FF9%7Fpdf%7FEnglish%7FENG_CD_967616_F9.pdf%7F1-967616-1

SKU A00569ZM
Brand Tyco (TE)
Shipping Weight 0.0250kg
Shipping Width 0.031m
Shipping Height 0.017m
Shipping Length 0.030m
Shipping Cubic 0.000016000m3
