General
| Status | Active |
| Category | Crimp Terminals |
| Series | 43030 |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Overview | Micro-Fit Connector System |
| Product Name | Micro-Fit 3.0 |
| UPC | 800754369329 |
43030-0010 - FEMALE TERMINAL, TIN, 26-30 AWG
43030 SERIES
$0.31
In Stock

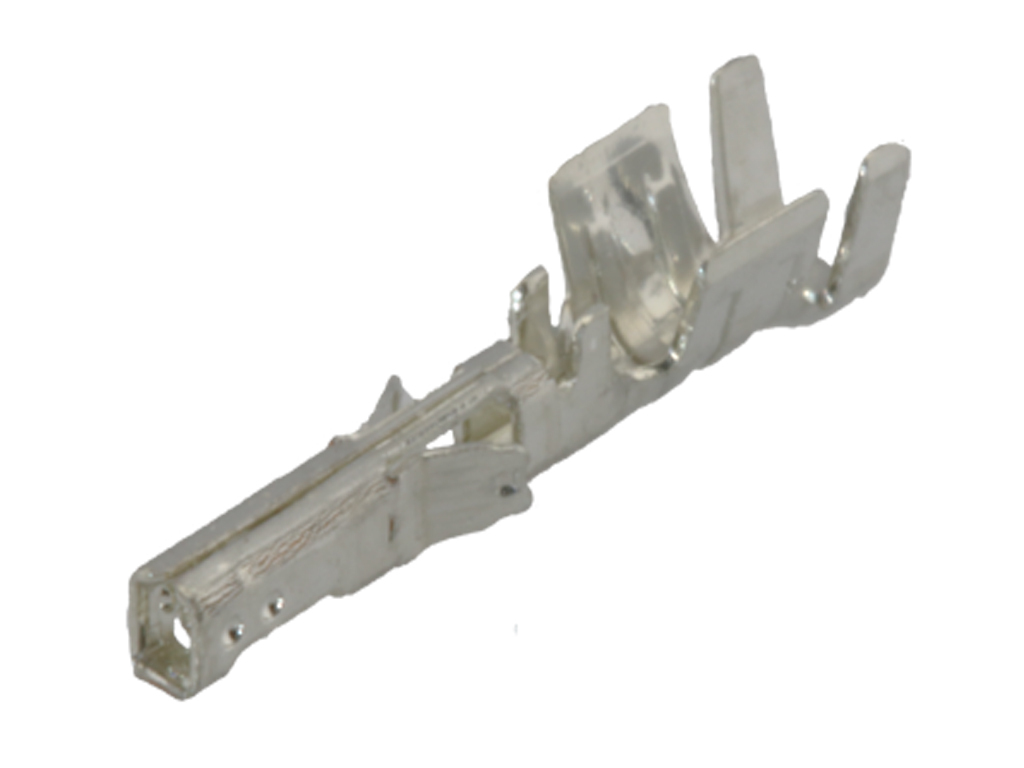

Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 26-30 AWG
(B01691)
Physical
| Gender | Female |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Net Weight | 0.061/g |
| Packaging Type | Bag |
| Plating min - Mating | 1.016µm |
| Plating min - Termination | 1.016µm |
| Termination Interface: Style | Crimp or Compression |
| Wire Insulation Diameter | 1.27mm max. |
| Wire Size AWG | 26, 28, 30 |
| Wire Size mm² | N/A |
https://www.molex.com/webdocs/datasheets/pdf/en-us/0430300010_CRIMP_TERMINALS.pdf
| SKU | B01691 |
| Brand | MOLEX |
| Unit Of Measure | ea |
