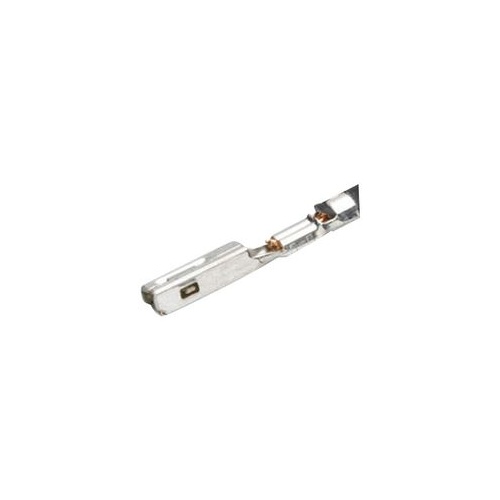

MX150 Female Terminal for Mat-Sealed Connectors, Tin Plating, 18 and 20 AWG
(B01739J)
General
| Status | Active |
| Category | Crimp Terminals |
| Series | 33012 |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Comments | For automatic and semi-automatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers. |
| Overview | MX150 Sealed and Unsealed Connector System |
| Product Name | MX150 |
| UPC | 822350084239 |
Physical
| Gender | Female |
| Grip Code | 18 |
| Material - Metal | High Performance Alloy (HPA) |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Net Weight | 0.391/g |
| Packaging Type | Reel |
| Plating min - Mating | 0.508µm |
| Plating min - Termination | 0.508µm |
| Termination Interface: Style | Crimp or Compression |
| Wire Insulation Diameter | 2.54mm max. |
| Wire Size AWG | 18, 20 |
| Wire Size mm² | 0.75-1.00 |
https://www.molex.com/webdocs/datasheets/pdf/en-us/0330122002_CRIMP_TERMINALS.pdf
| SKU | B01739J |
| Brand | MOLEX |
