$2.14
In Stock


Calculate Shipping

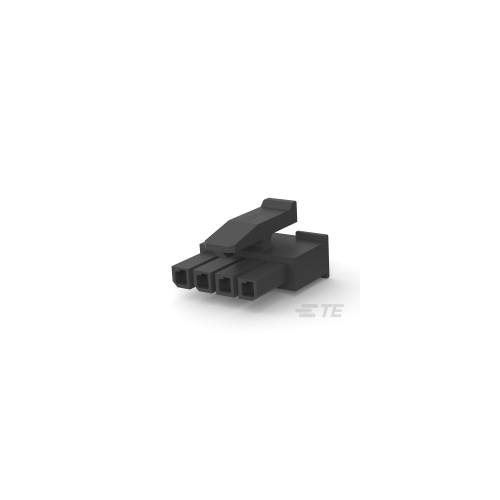

Micro MATE-N-LOK, Rectangular Power Connectors, Housing, Receptacle, Wire-to-Wire, 4 Position, 3mm [.118in] Centerline, Wire & Cable, UL 94V-0

(A01397)

Product Type Features


  • Rectangular Power Connector Type : Housing

  • Connector & Housing Type : Receptacle

  • Connector System : Wire-to-Wire

  • Sealable : No

  • Connector & Contact Terminates To : Wire & Cable

Configuration Features


  • Number of Positions : 4

  • Number of Rows : 1

Electrical Characteristics


  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

Contact Features


  • Contact Retention Within Housing : Without

  • Contact Type : Socket

  • Contact Layout : Inline

Termination Features


  • Termination Method to Wire & Cable : Crimp

Mechanical Attachment


  • Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features


  • Centerline (Pitch) : 3 mm [ .118 in ]

  • Housing Color : Black

  • Housing Material : Nylon 66/6

Usage Conditions


  • Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • UL Flammability Rating : UL 94V-0

  • Glow Wire Rating : Standard Part - Not Glow Wire

  • Agency/Standard : CSA, UL

  • VDE Tested : Yes

  • CSA File Number : LR7189

  • Agency/Standard Number : E28476

  • UL Rating : Recognized

  • CSA Rating : Certified

Packaging Features


  • Packaging Method : Tray

  • Packaging Quantity : 3000

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7F1445022%7FD4%7Fpdf%7FEnglish%7FENG_CD_1445022_D4.pdf%7F1445022-4

SKU A01397
Brand AMP
Shipping Weight 0.0250kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.014m
Shipping Cubic 0.000006000m3
