$45.17
In Stock


Calculate Shipping

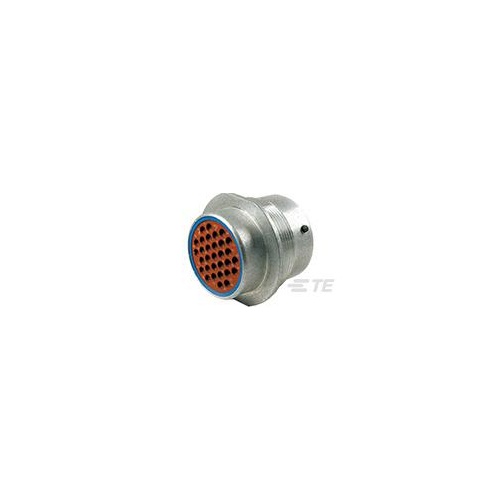

Hybrid, Housing for female terminals, Wire-to-Wire, 31 Position, Sealable, Blue, Power & Signal

(A03211)

Product  Description


DEUTSCH HD30 housings are circular shaped, metal connectors that are offered in multiple pin configurations from 2 to 47 cavities. HD30 housings feature a coupling ring for mating and accept DEUTSCH contact sizes 4 through 20 (100-7.5 amps).View All DEUTSCH HD30 HOUSINGS (324)

Please review product documents or contact us for the latest agency approval information.



Please Note: Use the Product Drawing for all design activity.

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 31

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Body Features


  • Color : Blue

  • Cable Exit Angle : 180°

  • Body Material : Other

Contact Features


  • Mating Pin Diameter : 1.5 mm [ .059 in ]

Mechanical Attachment


  • Mounting Feature : Without

  • Terminal Position Assurance : No

  • Polarized : Yes

Dimensions


  • Width : 47.63 mm [ 1.875 in ]

  • Height : 41.83 mm [ 1.647 in ]

  • Length : 50.8 mm [ 2 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP67

Packaging Features


  • Packaging Method : Package

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FHD34-24-XXP%2FSX%7FB2%7Fpdf%7FEnglish%7FENG_CD_HD34-24-XXPXSX_B2.pdf%7FHD34-24-31SE

SKU A03211
Brand Deutsch/TE
Shipping Weight 0.1000kg
Shipping Width 0.047m
Shipping Height 0.050m
Shipping Length 0.041m
Shipping Cubic 0.000096000m3
