| Part Number: |
DT06-2S-E008 |
| Series: |
DT Series |
| Insulation: |
.088-.145 [2.24-3.68] |
| Wire Size: |
14, 16, 18, 20 |
| Required Wedgelock: |
W2S |
| Keyed: |
No |
| Color: |
Gray |
| Material: |
Plastic |
| Shape: |
Rectangular |
| Connector Style: |
Plug |
| Cavities: |
2 |
| Contact Size: |
16 |
| Current Rating: |
13 |
| Holds Pin/Socket: |
Socket |
| Modification: |
Shrink Boot Adapter |
| Flange/In-line/PCB Mount: |
In-line |

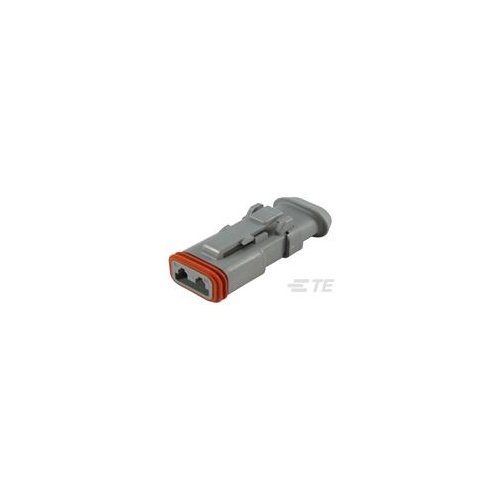

(A03320D)
Product Type Features
-
Connector Style : Housing for female terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Hybrid Connector : No
-
Primary Locking Feature : Integrated in Housing
-
Connector & Contact Terminates To : Wire & Cable
-
Strain Relief : Add By Accessory
Configuration Features
-
Number of Positions : 2
-
Number of Rows : 1
-
Blank Cavity Position : 0
Electrical Characteristics
-
Nominal Voltage Architecture (V): 12, 24, 48
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
Body Features
-
Color : Gray
-
Cable Exit Angle : 180°
-
Body Material : PA GF
Contact Features
-
Mating Pin Diameter : 1.59 mm [ .0625 in ]
-
Contact Current Rating (Max) (A): 13
Mechanical Attachment
-
Mounting Feature : Without
-
Terminal Position Assurance : Yes
-
Polarized : Yes
Housing Features
-
Centerline (Pitch) : 5.46 mm [ .215 in ]
Dimensions
-
Width : 15.01 mm [ .591 in ]
-
Height : 15.77 mm [ .621 in ]
-
Length : 40.92 mm [ 1.611 in ]
Usage Conditions
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application : Power & Signal
Industry Standards
-
Degree of Protection : IP68, IP6K9K
-
UL Flammability Rating : 12mm Flame Test per Standard UL-94
-
Agency/Standard : SAE J2030
Packaging Features
-
Packaging Method : Box
-
Packaging Quantity : 1200
Other
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
