$22.76
In Stock


Calculate Shipping

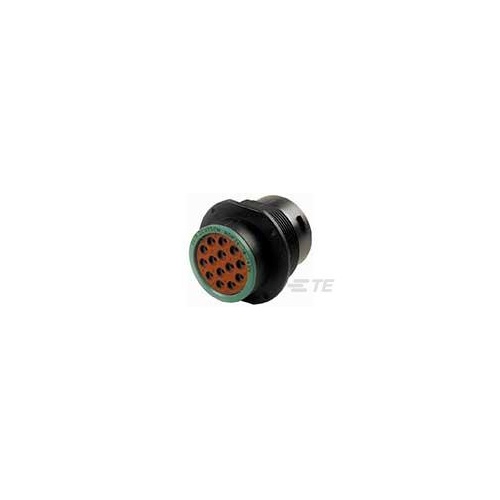

Hybrid, Housing for female terminals, Wire-to-Wire, 14 Position, Sealable, Green, Power & Signal, Panel Mount

(A03275)

Product Type Features


  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : Add By Accessory

Configuration Features


  • Number of Positions : 14

Electrical Characteristics


  • Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Body Features


  • Color : Green

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features


  • Mating Pin Diameter : 1.5 mm [ .059 in ]

Mechanical Attachment


  • Connector Mounting Type : Panel Mount

  • Terminal Position Assurance : No

  • Mounting Feature : Without

  • Polarized : Yes

Dimensions


  • Length : 41.86 mm [ 1.648 in ]

  • Height : 44.45 mm [ 1.75 in ]

Usage Conditions


  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application


  • Circuit Application : Power & Signal

Industry Standards


  • Degree of Protection : IP67

  • UL Flammability Rating : UL 94V-1

Other


  • Connector Position Assurance Capable : No

  • Serviceable : Yes
